How much weight does painting an IOM really add? In the past this question has never bothered me that much. Lets be fair I'm building a balsa hull shell and covering it in fibre glass. If I ever struggled to build an IOM below minimum weight (which I haven't to date) I would omit keeping the balsa as an integral part of the hull and use the planked hull on it's shadows as a plug for a complete 100% FG hull. Now that would be interesting to do just to see the weight and stiffness differences. Although in both instances a paint finish is usually required.
I'm using Epiflanes 2K paint as it was first highly recommended to me by the builder of the UK Britpop. I painted my last IOM with it and it is indeed very very good paint. I'm expecting (hoping) to apply three coats in a time scale which doesn't require sanding between coats. Then, when I think the paint has had adequate time to harden = 4-5-6... days I'll fair it off with 800-1200 wet or dry and buff it back to a high gloss finish with rubbing compound.

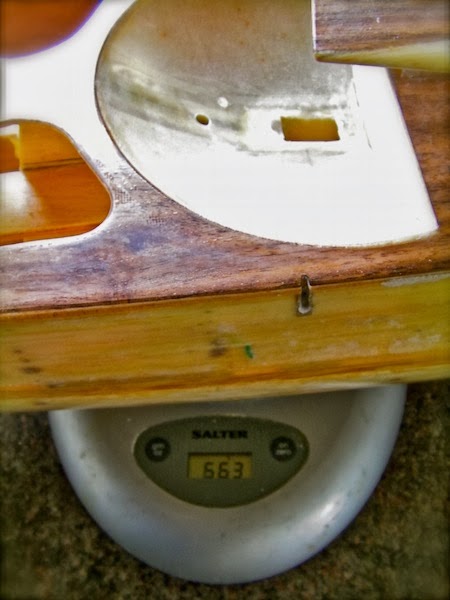

So before all this starts here's the near bare hull on the scales; 663g or 23.4 oz
Edge in the raw
RESULT
After applying 3 coats of 2k paint to the hull and 2 coats of Satin Cote to the decks the hull turned out 18 grams heavier. If I had chosen a dark hull colour then the paint would probably have covered in 2 coats saving approx 5 grams or put another way the weight of the small M4 bolt which secures the fin and ballast
